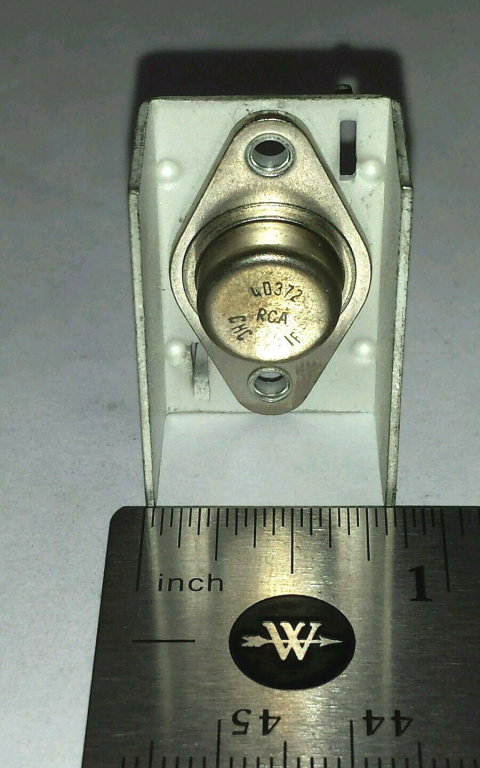

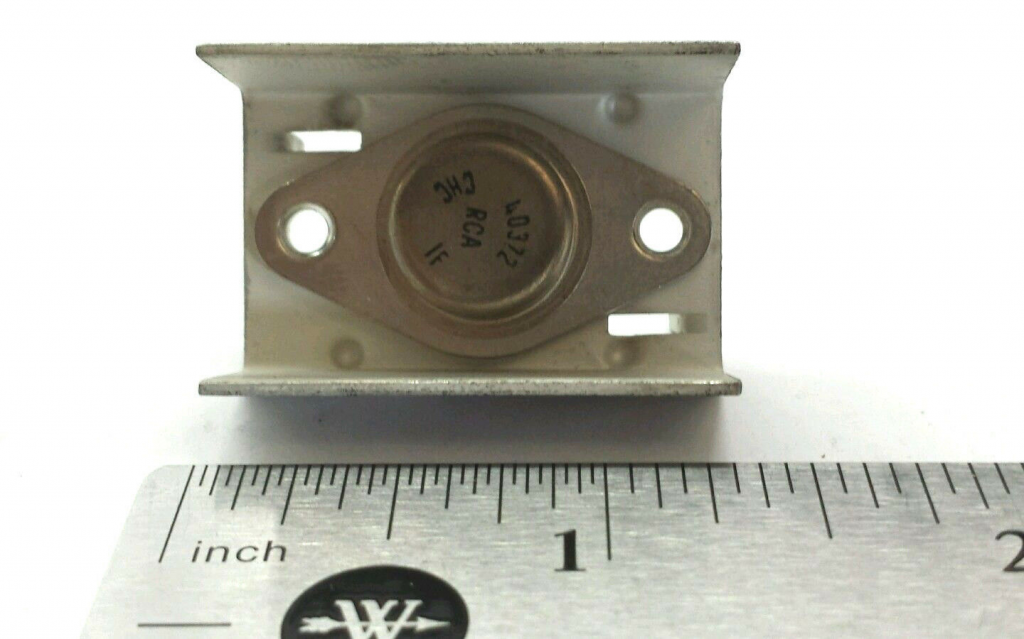

Type Designator: 40372
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 6 W
Maximum Collector-Base Voltage |Vcb|: 90 V
Maximum Collector-Emitter Voltage |Vce|: 55 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 0.8 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Noise Figure, dB: -
