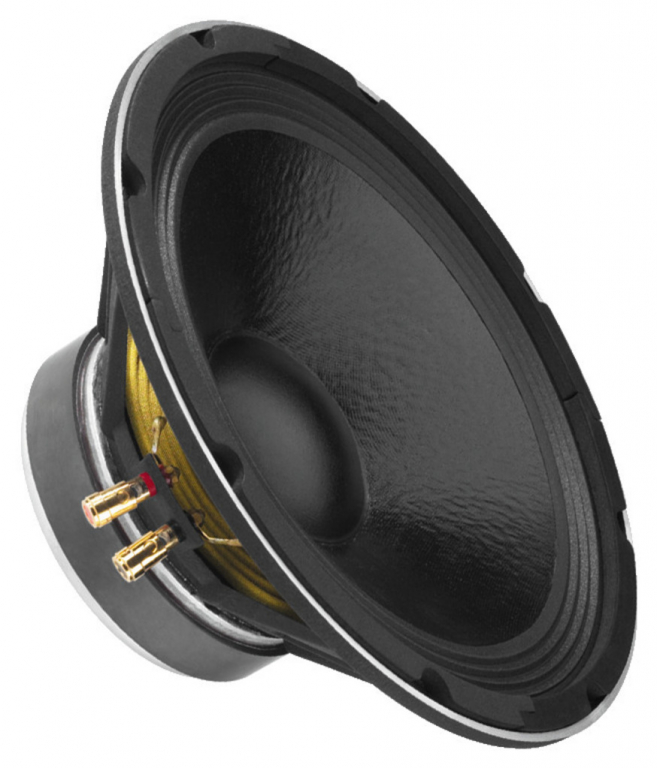

MONACOR SP-12A WOOFER PROFESSIONALE 600W 8OHM
|
|
|
|
Altoparlante professionale da 30 cm (12 ") di lunga escursione.
Cesto pressofuso.
Cono con rivestimento idrorepellente.
Ampia risposta in frequenza.
Bassa distorsione.
Alta efficienza.
Eccellente riproduzione dei bassi.
Impedance (Z) |
8 O |

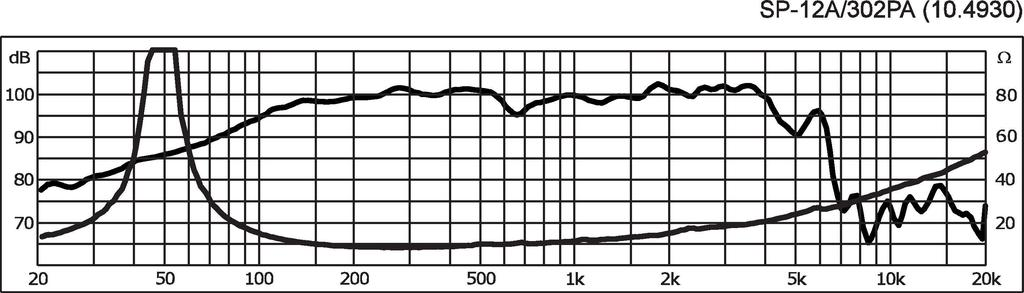

Frequency range |
f3-4,000 Hz |
Resonant frequency (fs) |
50 Hz |
Power rating (RMS) |
300 W |
Peak music power output (MAX) |
600 W |
SPL |
99 dB/W/m |
Suspension compl. (Cms) |
0.19 mm/N |
Moving mass (Mms) |
50 g |
Mech. Q factor (Qms) |
7.87 |
Electr. Q factor (Qes) |
0.35 |
Total Q factor (Qts) |
0.34 |
Equivalent volume (Vas) |
77 l |
DC resistance (Re) |
6.4 O |
Force factor (BxL) |
16.98 Tm |
Voice coil induct. (Le) |
0.8 mH |
Voice coil diameter |
Ø 66 mm |
Voice coil former |
Kapton |
Linear excursion (XMAX) |
± 5 mm |
Eff. cone area (Sd) |
530 cm2 |
Magnet weight |
2 kg |
Magnet diameter |
Ø 154 mm |
Mounting cutout |
Ø 284 mm |
Mounting depth |
123 mm |

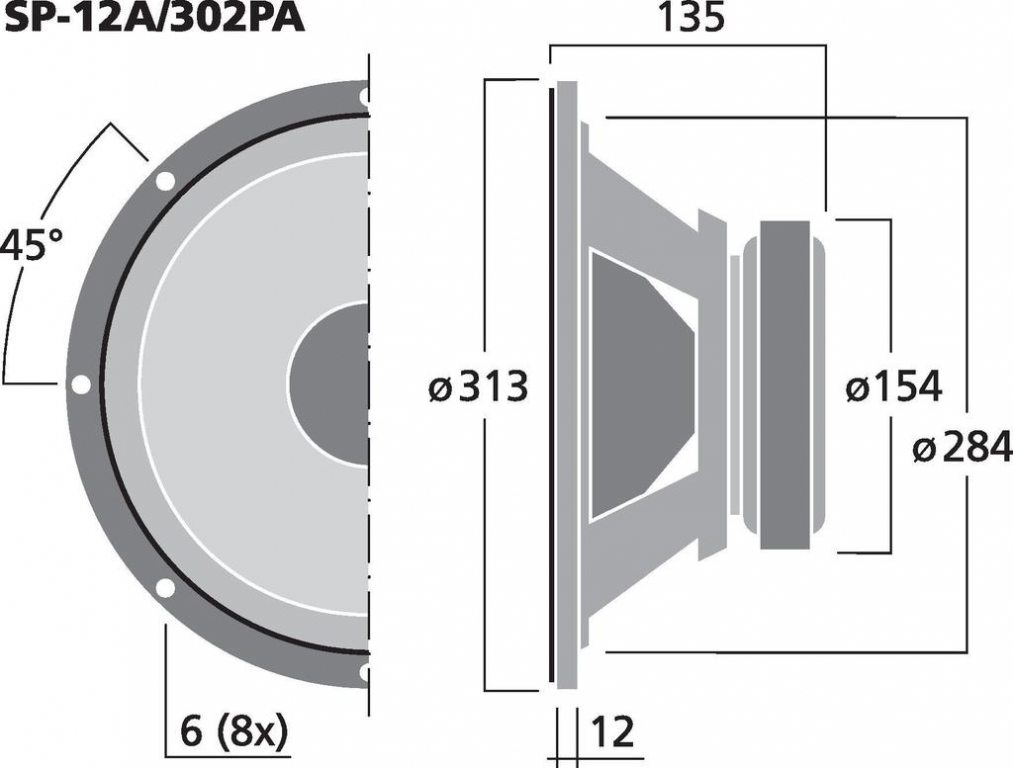

Dimensions |
Ø 313 mm x 135 mm |
Outside diameter |
Ø 313 mm |
Width |
Ø 313 mm |
Depth |
135 mm |
Colour |
black |
Admiss. ambient temp. |
0-40 °C |
Weight |
5.1 kg |
Packing unit |
1 |
Type of speaker |
12" |
Packing dimensions (W x H x L) |
0.345 x 0.165 x 0.35 m |
Gross weight |
5.8 kg |
Net weight |
5.1 kg |
|
