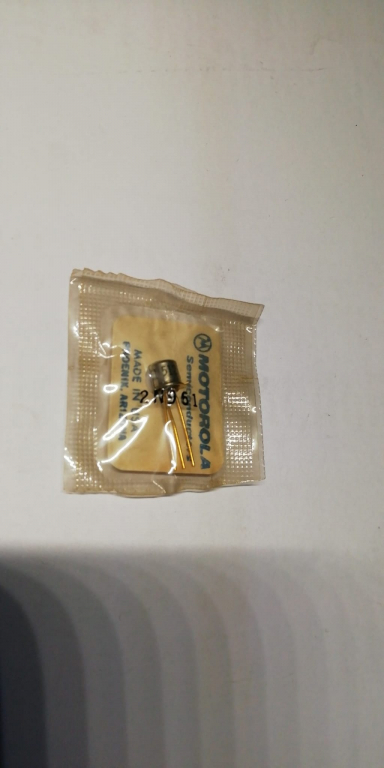

Transistor, PNP. Max voltage: 12V. Max current: 10mA. Dissipation: 150mW. Package: TO-18 gold leads. P/N: 2N961. Note: Germanium.
Type Designator: 2N961
Material of Transistor: Ge
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.15 W
Maximum Collector-Base Voltage |Vcb|: 12 V
Maximum Collector-Emitter Voltage |Vce|: 12 V
Maximum Emitter-Base Voltage |Veb|: 2 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 100 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 4 pF
Forward Current Transfer Ratio (hFE), MIN: 20
Noise Figure, dB: -
Package: TO18
